Straight Stairlifts

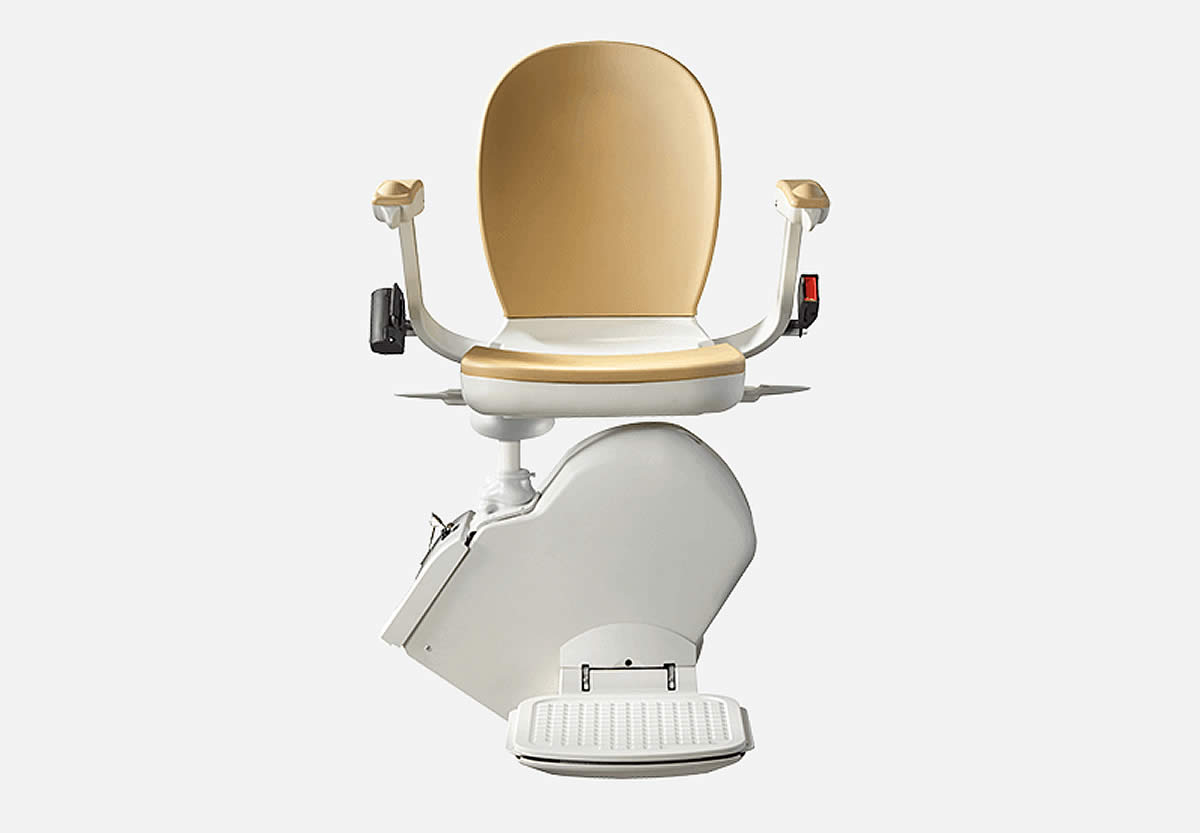

The Acorn 130 Stairlift
A straightforward solution for straight staircases.
A straight stairlift is the ultimate staircase solution, giving you the full use of the home you love. Blending seamlessly into your home, with a smooth start and stop mechanism, you can glide effortlessly up and down the stairs.
Continually developed, improved and refined over many years, the Acorn 130 is the direct descendant of our very first straight stairlift, the Acorn Superglide. Contact us for FREE no obligation advice and speak to one of our friendly experts.
Stairlift Hinged Rail Option!
All Acorn Stairlifts are available with a unique hinged rail option, designed to eliminate any obstruction or trip hazard at the foot of the stairs. Acorn Stairlifts have all the features you need, and none you don’t!.
Safety and Convenience
- Folding foot rest
- Seat belt
- Diagnostic display
- Backup battery
- Remote control
Straight Stairlift Features
- Fits quickly and easily to the stairs, not the wall
- Requires no structural changes to your home
- Affordable and reliable with low running costs
- Slimline and folds away conveniently when not in use
- Optional hinged rail designed to eliminate any obstruction or trip hazard
Straight Stairlift Installation
All Acorn stairlifts fit directly to the staircase, not the wall, so installation is quick and mess-free.
FREE Straight Stairlift Quote
Our comprehensive home survey is completely free and you’re under no obligation to buy!
FREE Stairlift Home Survey
FREE Stairlift Quote
NO Pressure Selling
NO Need for Repairs or Redecoration
Book a Call and Free stair Survy
Curved Stairlifts

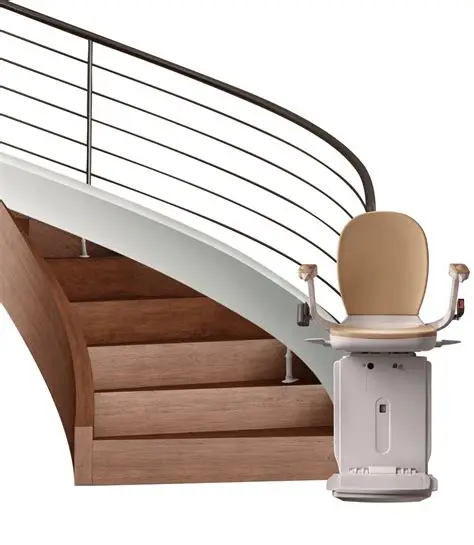

The Acorn 180 Curved Stairlift
Welcome to one of the most innovative stairlifts in the world.
Designed from the ground-up for any curved staircase, this curved stairlift offers a comfortable and reliable ride. The advanced self-levelling carriage moves along the modular rail system, coming to a soft stop with ease.
With its low running costs, it even operates through a power cut. The sleek, smooth and modern rail system is unique to this stairlift. There is no waiting weeks to have an expensive rail made for your home. Utilising the FastTrack® system, it can be installed in a matter of days with no mess and no fuss.
To learn more about our curved stairlift prices and installation, contact us to get your free stairlift quote from Acorn Stairlifts or simply for more advice.
Stairlift Hinged Rail Option!
Automatic powered hinges can be fitted when there is an opening or doorway at the foot of the stairs. An automatic powered hinged rail solves this problem. Acorn Stairlifts have all the features you need, and none you don’t!
ACORN CURVED STAIRLIFT 180 – USER MANUAL
Angles
| Min | 0° |
| Max | 58° |
Maximum Rail Length
| 30 metres | 1181 inches |
| Dimensions | mm | inch | |
|---|---|---|---|
| A | Floor to top of footrest | 50 | 2 |
| B | Top of footrest to top of seat | 485 | 19 |
| C | Top of seat to top of arms | 245 | 9.75 |
| D | Top of arms to top of seat back | 195 | 7.75 |
| E | Width between armrests | 480 | 19 |
| F | Overall width including seatbelt | 620 | 24.5 |
| G | Overall height | 975 | 38.25 |
| H | Length of arms from seat back | 460 | 18 |
| I | Length of seat base from seat back | 435 | 17 |
| J | Length of footrest | 360 | 14.25 |
| K | Width of footrest | 375 | 14.75 |
| L | Front of footrest to stringer | 640 | 25.25 |
| M | Back of seat to stringer | 35 | 1.5 |
| N | Folded width | 335 | 13.25 |
| O | Minimum width required to swivel at top | 690 | 27.25 |
| P | Distance from front of rail to stringer | 180 | 7 |
| Q | Height of leg | 125 (min) 650 (max) | 5 (min) 25.5 (max) |
| R | Front of drop nose to first stair | 450 | 17.75 |
This stairlift is independently tested and manufactured to the following standards:
- BS EN 81-40:2020 – European safety standard – ‘Specification for powered stairlifts’.
- CE mark – Acorn Stairlift meets the requirements of the applicable European Directive(s).
- ISO 9386:2-2000 International standard for stairlifts.
| Specifications | |
|---|---|
| Motor output speed | No greater than 0.15 meters per second |
| Method of drive | Rack and Pinion |
| Motor Power | 0.375KW |
| Carriage Power Supply | 29.6v D2C batteries |
| Maximum capacity | 120kg |
| Power supply input range | 100-240v AC |
* NOTE: Acorn, in keeping with its policy of continual development, reserves the right to change specification without notice. All measurements are approximate.
